Date: October 2016

Prior to the start of Pinball Expo in October this year, Pinball News was fortunate enough to visit the Churchill Cabinet Company factory in the Chicago suburb of Cicero to see how they make many of the playfields, cabinets and backboxes used in modern pinball machines.

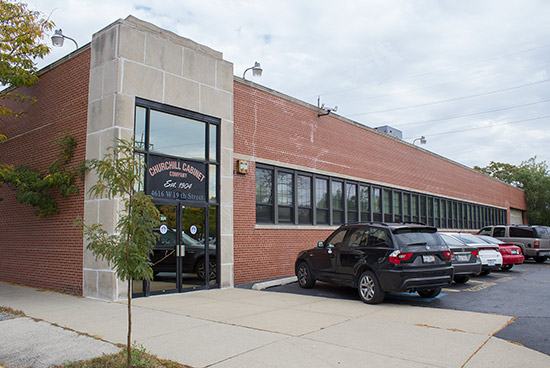

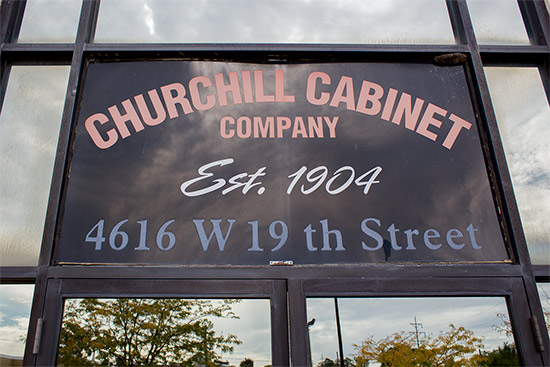

The Churchill Cabinet Company factory in Chicago
The Churchill Cabinet Company factory in Chicago

Our guide was Doug Skor who is Vice President of Business Development at the company, and he began by relating how the Churchill Cabinet Company began, as the name suggests, by being a furniture maker. The business changed as cheaper, mass-produced furniture became the norm and the video game business took off, requiring the manufacturing of thousands of arcade cabinets for companies such as Namco and Midway.

The video bubble burst, of course, but pinball has remained a steady business for the company, and they bought playfield maker Lenc-Smith from Williams in 1996. In fact the building we were visiting at 4616 W. 19th Street in Cicero was the former Lenc-Smith facility.

The Churchill Cabinet Company factory in Chicago
The Churchill Cabinet Company factory in Chicago

Churchill not only makes pinball and video game cabinets and playfields, they also sell a range of complete games under the Chicago Gaming Company brand. This includes the remake of the Medieval Madness pinball and the Arcade Legends video multi-game console.

Home to the Chicago Gaming Company as well
Home to the Chicago Gaming Company as well

The company’s core business of building cabinets and playfields hasn’t changed greatly over the years, and upon entering the building it is apparent not much has changed in the reception area either. The wallpaper, carpet and sofa could all bear witness to the rollercoaster fortunes of the coin-op business since the ’60s.

Walking into the factory we were immediately faced with numerous boxes of completed games awaiting shipment. Medieval Madness remakes made up the majority but there were Arcade Legends games as well, with everything – and this is a theme we shall return to throughout the factory – coated in a fine layer of wood dust.

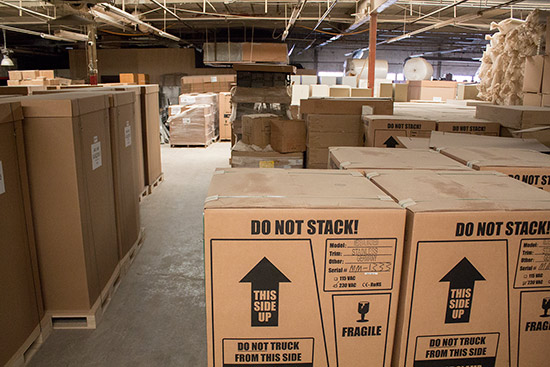

Boxed completed games
Boxed completed games

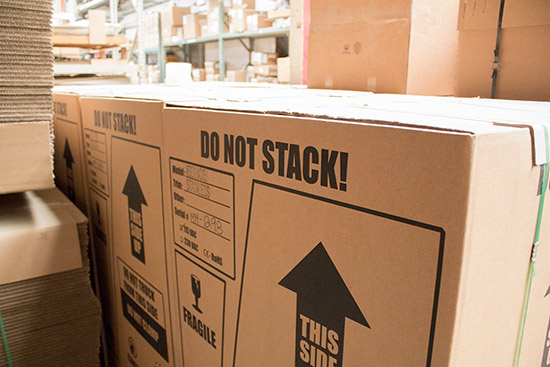

Medieval Madness remakes
Medieval Madness remakes

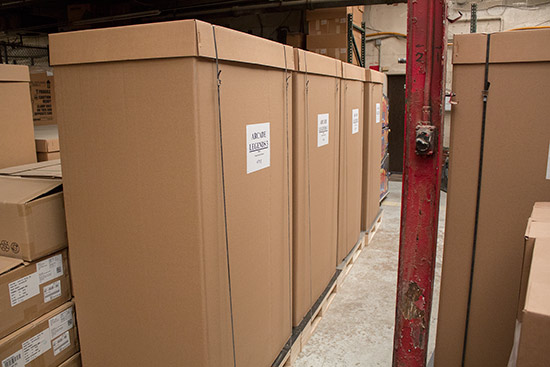

Arcade Legends video games
Arcade Legends video games

Walk inside a little further and the view changes from complete games to assembled components and finally to the constituent parts.

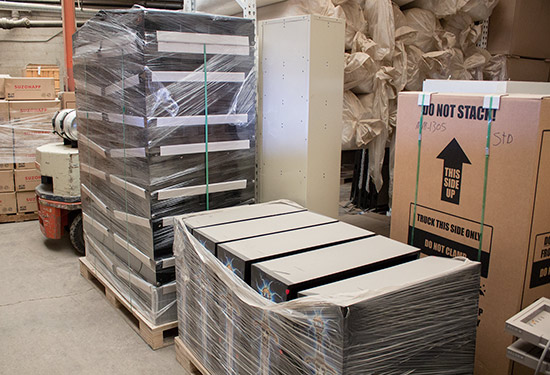

Medieval Madness remake backboxes
Medieval Madness remake backboxes

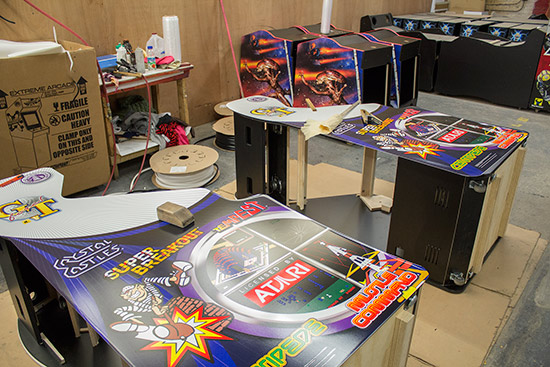

Decals being applied to video game cabinets
Decals being applied to video game cabinets

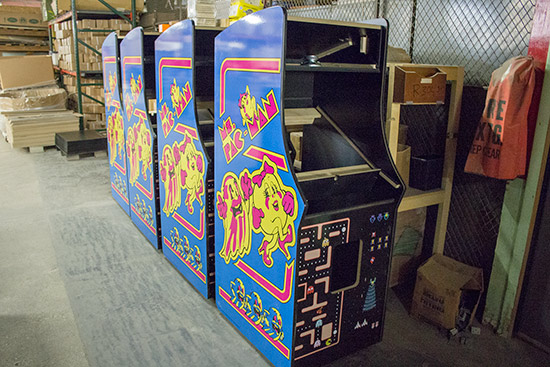

Ms. Pac-Man and Galaga combo cabinets
Ms. Pac-Man and Galaga combo cabinets

Of course building the cabinets and backboxes for the Chicago Gaming machines are only a part of the company’s business. Making cabinets, backboxes or playfields for other game manufacturers such as Stern Pinball, Jersey Jack Pinball and Raw Thrills is the bulk of their work.

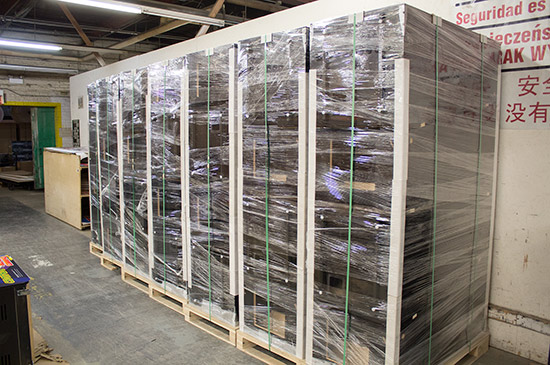

Stacks of pinball cabinets ready to ship to a local pinball manufacturer
Stacks of pinball cabinets ready to ship to a local pinball manufacturer

As we walk further through the factory – it’s quite deep – we pass the playfield and cabinet panel routing areas.

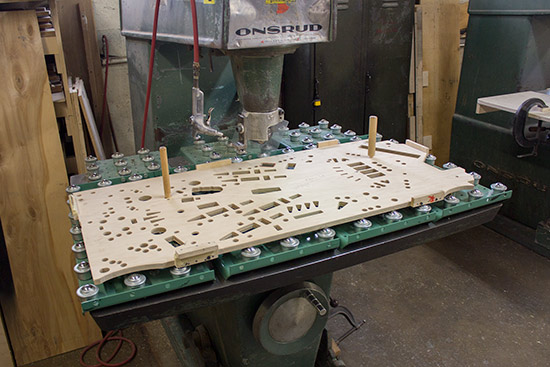

A Metallica playfield on the router
A Metallica Pro playfield on the router

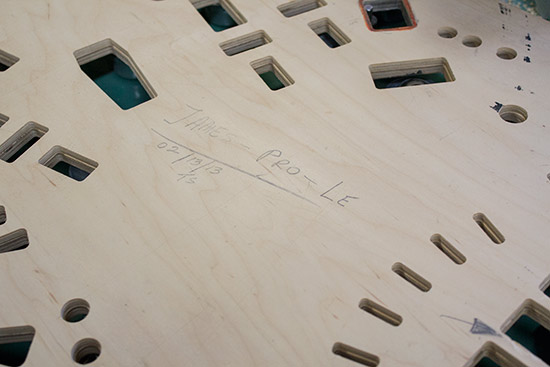

Stern now use code names for their games - James is Metallica
Stern now use code names for their games – James is Metallica

One thing you quickly marvel at is the sheer quantity of plywood sheets around the factory – some plain, some cut and some routed.

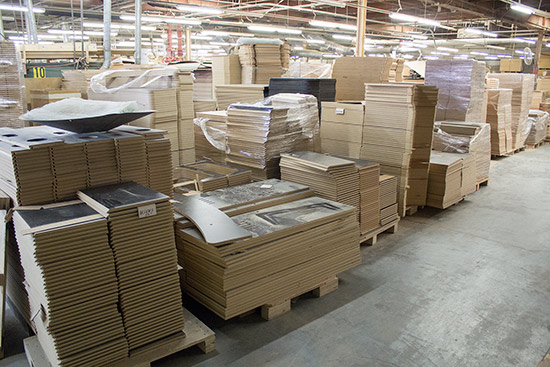

Stacks and stacks of wood
Stacks and stacks of wood

Previously the interior of pinball cabinets would have been sprayed black – usually quite roughly – but they now have a black laminate which is etched away by the routing machine to improve adhesion when other wooden parts need to be glued to the panel. The outer face is treated and spray-painted wood as printed decals adhere better to that than to a laminate.

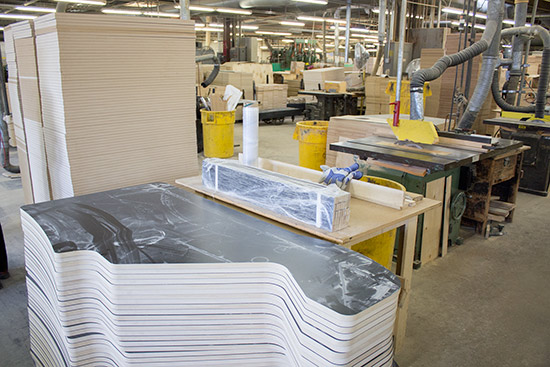

Stacks of cut video game cabinet sides and pinball bottom panels
Stacks of cut video game cabinet sides and pinball bottom panels

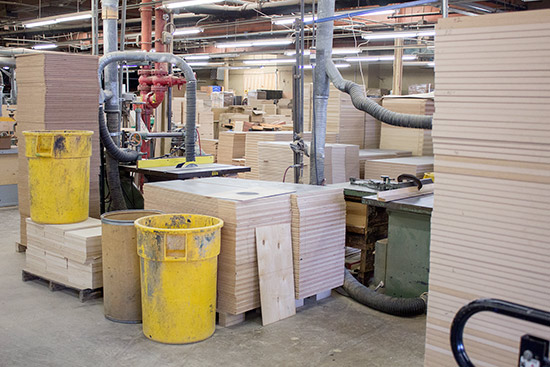

Where the bottom panels are made
Where the bottom panels are made

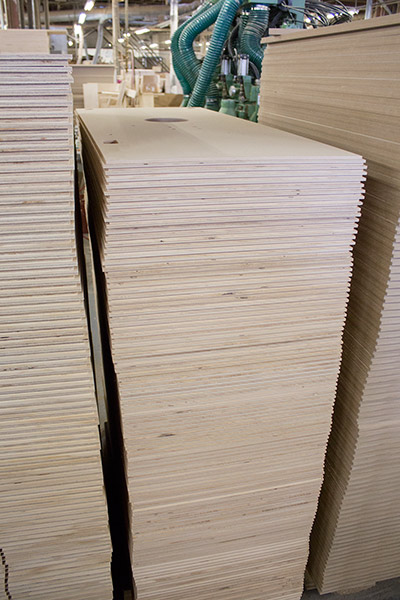

Pinball cabinet bottom panels
Pinball cabinet bottom panels

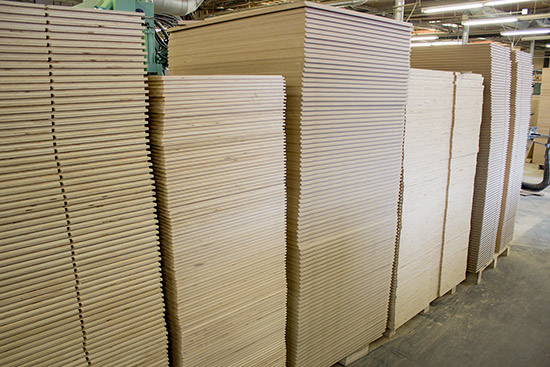

Just one stack of many
Just one stack of many

Pinball cabinet side panels are first cut from a larger sheet and then routed to produce the interlocking grooves, the flipper button holes, the screw holes and etched where mounting blocks will be glued and screwed to the side.

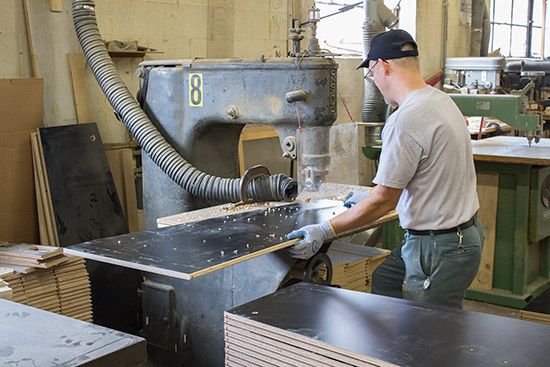

Cutting the side panels
Cutting the side panels

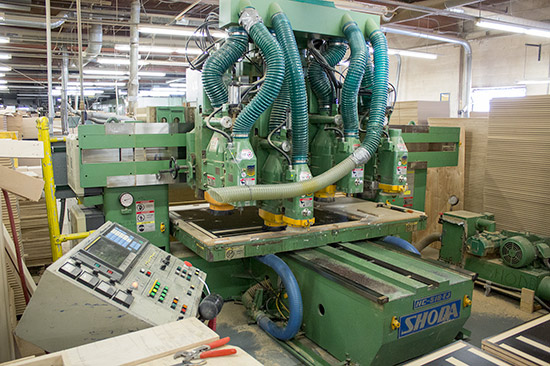

The side panels are routed on this machine
The side panels are routed on this machine

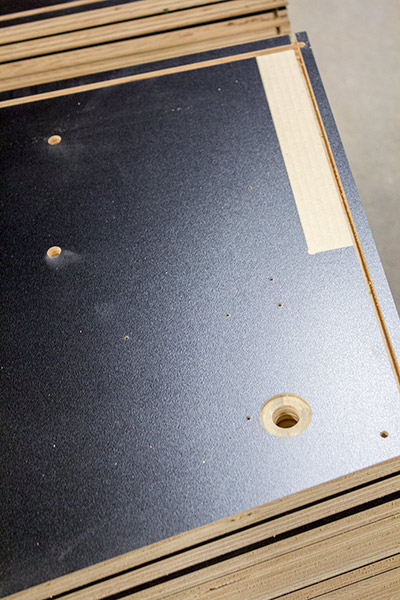

A finished side panel
A finished side panel

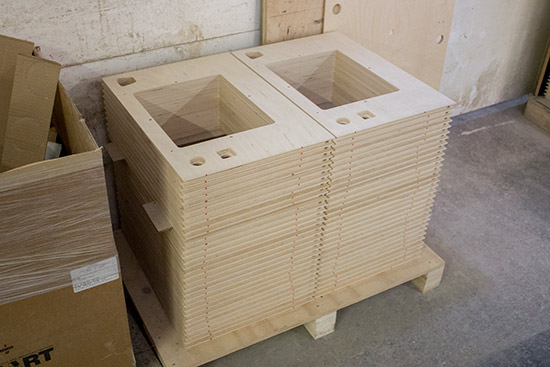

Front panels are produced in the same way
Front panels are produced in the same way

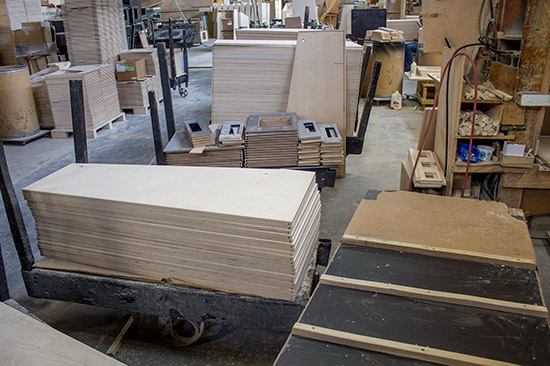

The it's time to put them all together
The it’s time to put them all together

The actual method of building a cabinet looks a little ramshackle but it’s a tried-and-tested technique which has produced countless tens of thousands of pinball games.

The front, back, bottom and side panels are glued and interlocked before going into a giant hydraulic cabinet press which applies pressure to form a complete and very solid base cabinet.

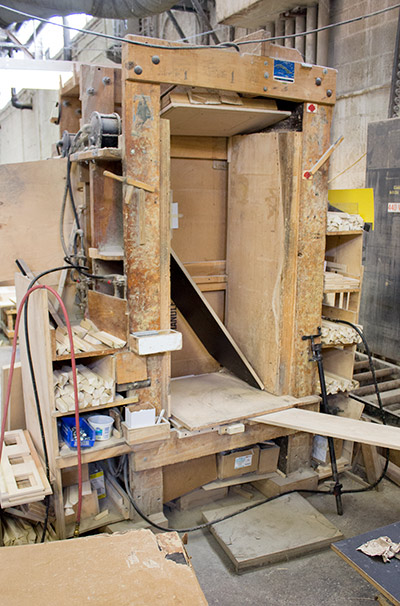

The cabinet press
The cabinet press

There are actually two cabinet presses here back-to-back, allowing two cabinets to be made at once.

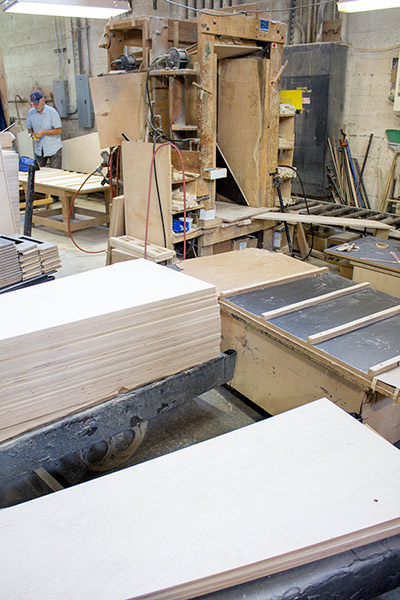

The cabinet forming area
The cabinet forming area

The playfields, meanwhile, continue on a separate line.

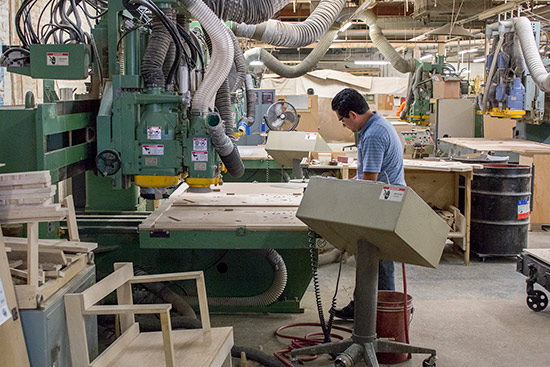

Routing the playfields
Routing the playfields

Once they have been routed they are examined for any flaws in the wood or in the routing. This produces a surprising number of rejects, all of which are stored in the Churchill Cabinet Company factory, although Doug said they would one day get around to clearing them out.

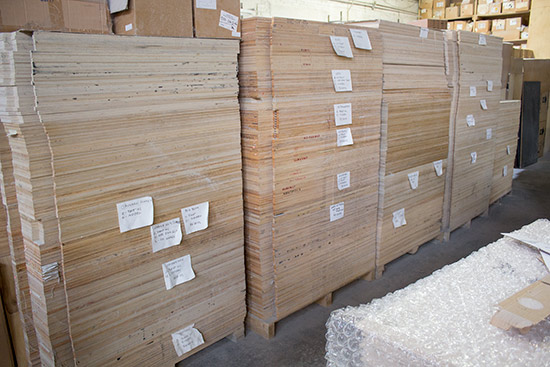

Reject playfields
Reject playfields

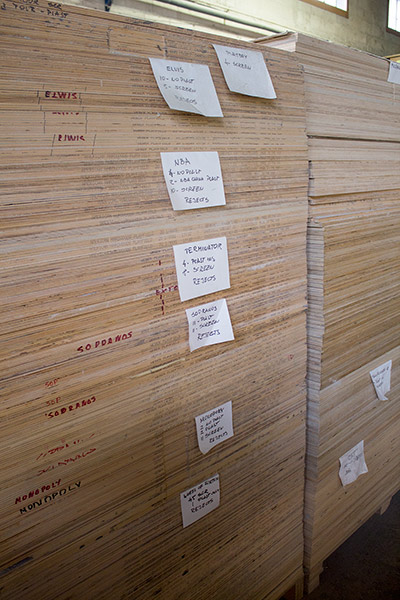

Reject playfields going back to NBA, Elvis, Monopoly and Wheel of Fortune
Reject playfields going back to NBA, Elvis, Monopoly and Wheel of Fortune

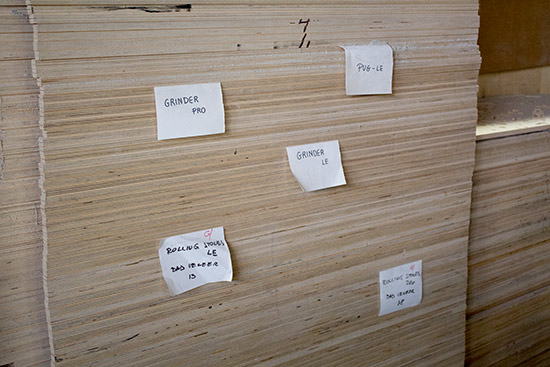

Playfields for Transformers and Rolling Stones
Playfields for Transformers and Rolling Stones

If you are wondering where all this wood comes from, the factory stores large stocks of Russian Birch – a name given to the type of wood whether or not it comes from Russia.

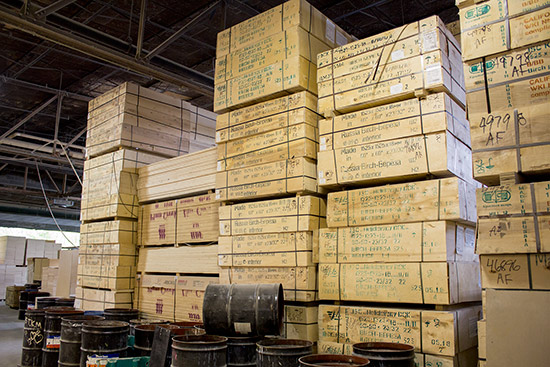

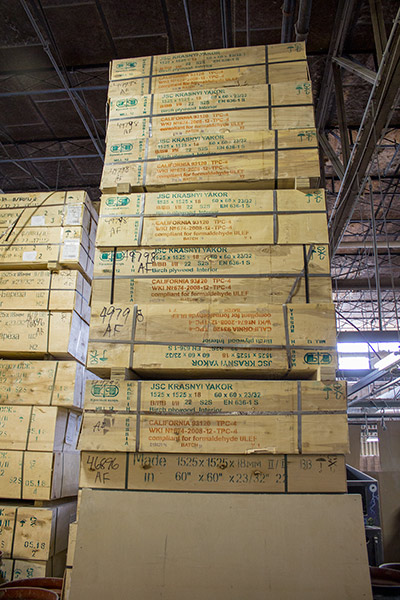

Stocks of Russian Birch
Stocks of Russian Birch
Stocks of Russian Birch
Stocks of Russian Birch

Those playfields which pass muster move on to the inserts room where every insert is hand glued and knocked into position. Boxes and boxes of inserts from Northern Plastics form the walls of the insert room.

Boxes of inserts
Boxes of inserts

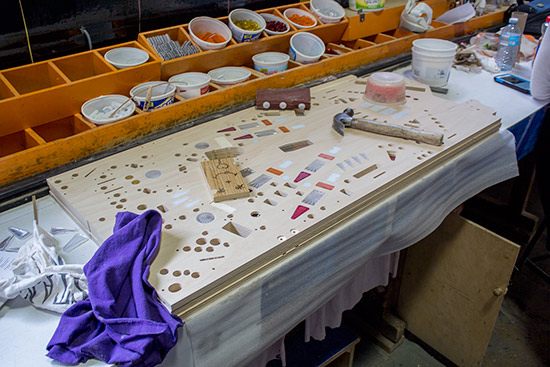

Inserting the inserts into a Metallica playfield
Inserting the inserts into a Metallica playfield

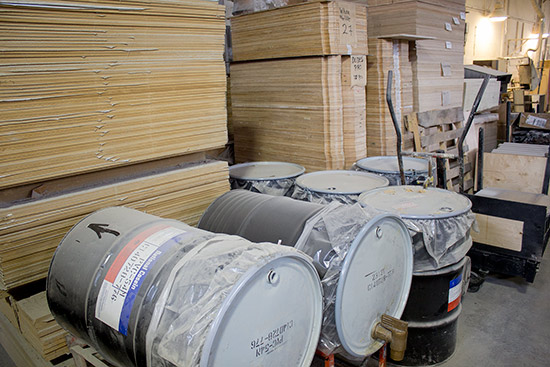

Affixing the inserts needs glue - lots of glue
Affixing the inserts needs glue – lots of glue

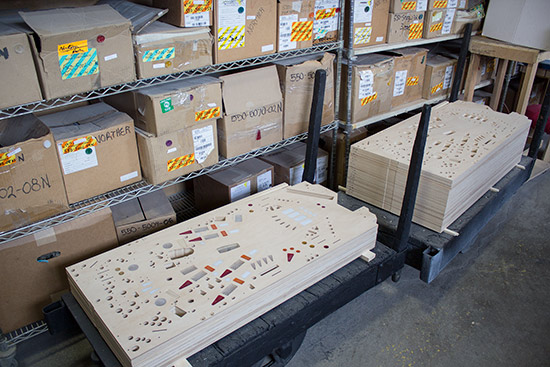

After and before
After and before

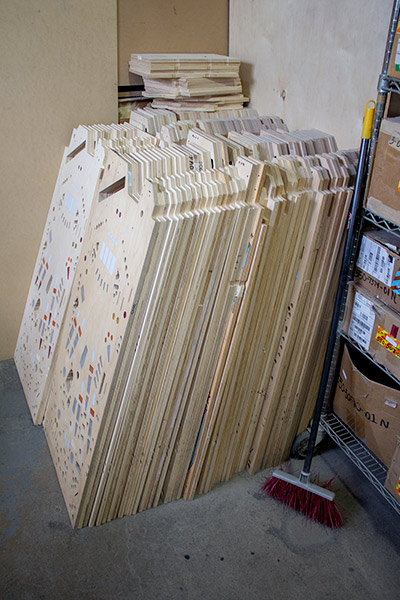

More insert-complete playfields
More insert-complete playfields
Doug with some insert-complete playfields
Doug with some insert-complete playfields

If there are any imperfections, the playfield is sanded to level everything before it move on to have artwork screen printed on it.

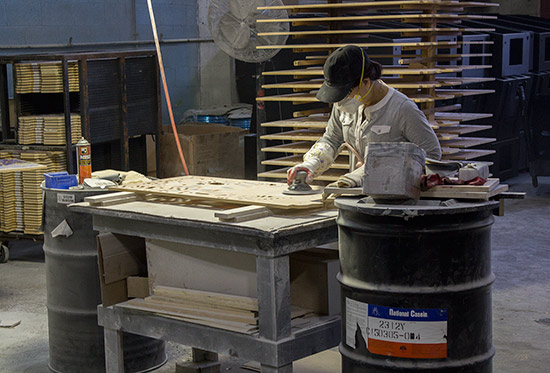

Sanding down a playfield
Sanding down a playfield

Once a playfield is checked and passed it moves on to the screen printing room where the individual inks are applied by hand, one-by-one.

The artwork is traditionally printed using a CMYK process which has additional layers added to print white or other specific colours not adequately reproduced by CYMK inks.

Each ink requires a separate screen to be made. A screen is a semi-porous sheet which allows the ink to pass through in varying amounts in specific areas. Churchill don’t make the screens themselves, so before a screen is used it is verified in the screens room.

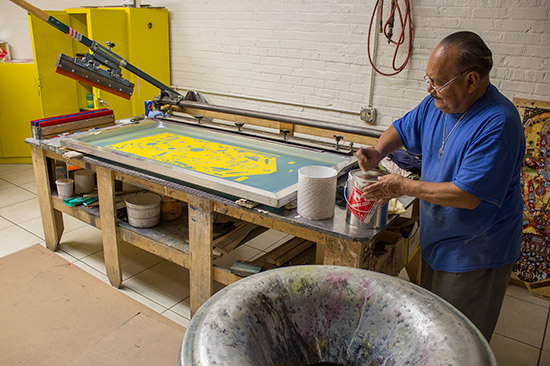

Checking the screens
Checking the screens

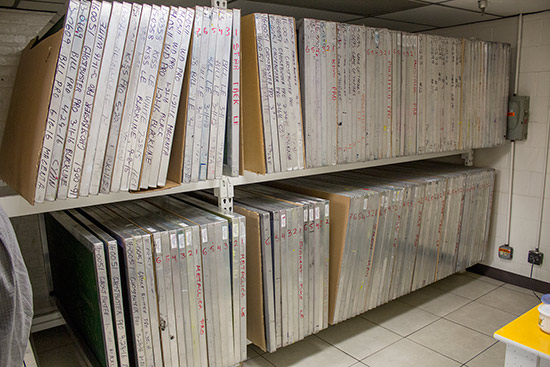

The multiple screens for various games
The multiple screens for various games

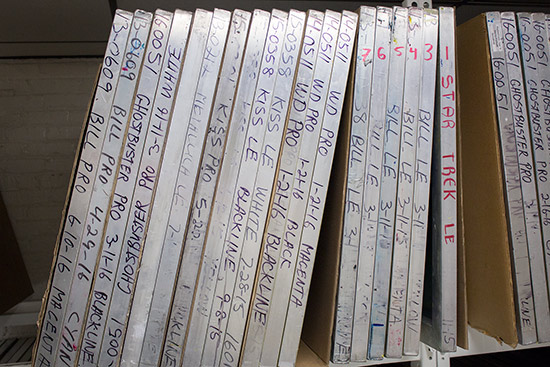

Screens for Ghostbusters, The Walking Dead and Star Trek
The multiple screens for various games

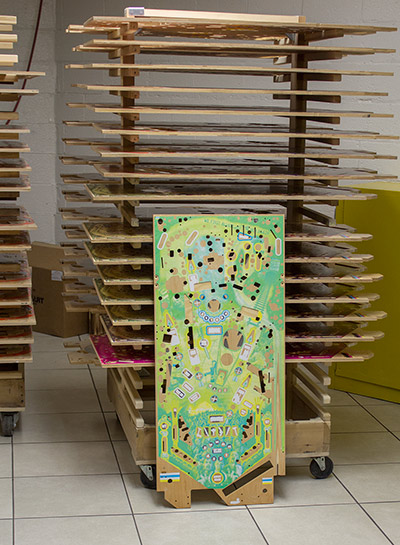

A The Walking Dead playfield without the magenta ink
A The Walking Dead playfield without the magenta ink

Once the screens are approved, they are used to print playfields.

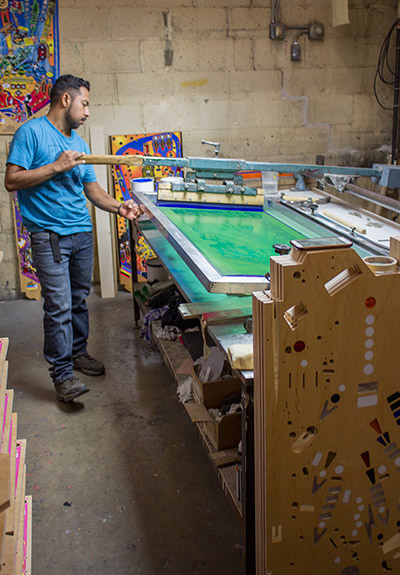

A Ghostbusters cyan screen is primed with ink
A Ghostbusters cyan screen is primed with ink

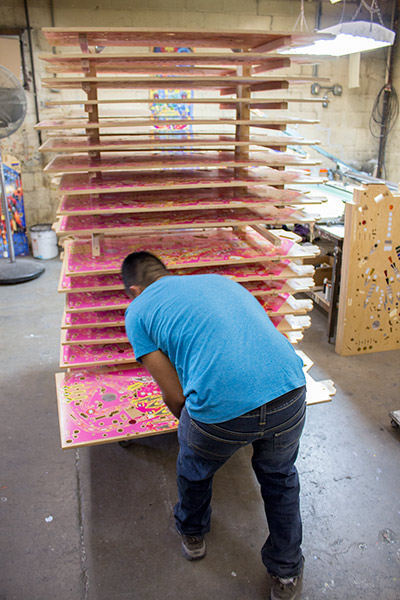

A Ghostbusters playfield with magenta and yellow ink is picked and placed under the screen
A Ghostbusters playfield printed with magenta and yellow ink is picked and placed under the screen

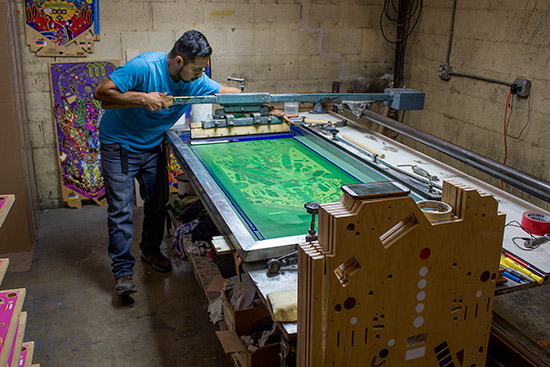

The ink squeegee is slid down the playfield
The ink squeegee bar is slid down the playfield to spread the ink

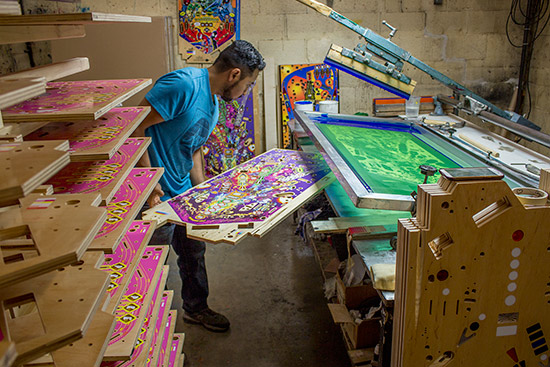

The freshly inked playfield is removed to dry
The freshly inked playfield is removed to dry

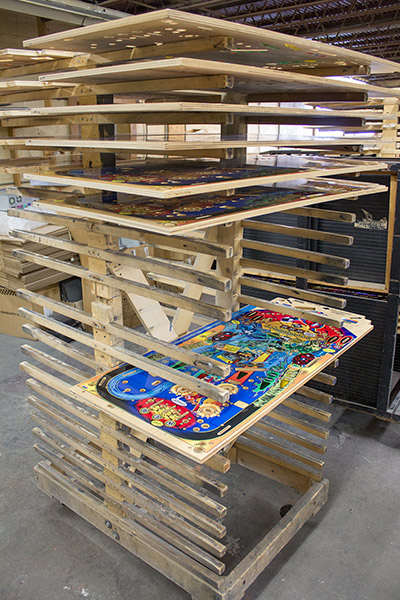

Drying racks for playfields
Drying racks for playfields

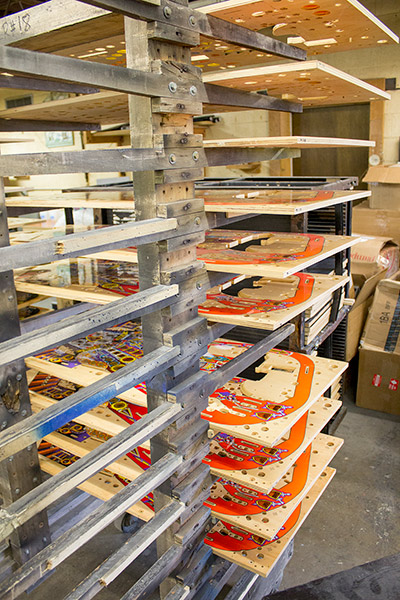

Medieval Madness playfields drying
Medieval Madness playfields drying

Once all the ink layers have been screen-printed and the inks have cured, the playfields head off to be clearcoated.

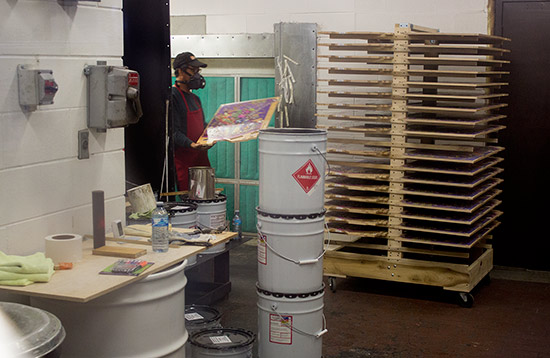

Ghostbusters playfields being clearcoated
Ghostbusters playfields being clearcoated

Due to the noxious fumes we weren’t allowed in the clearcoating area, but we could see the results which looked very impressive.

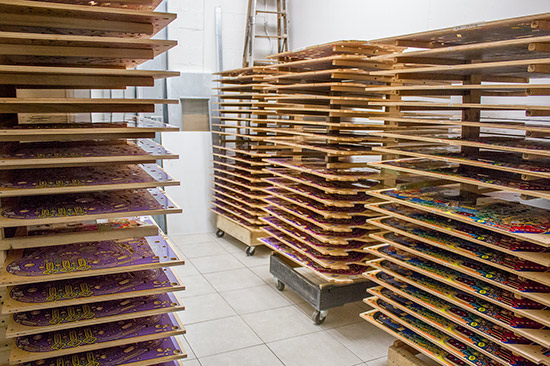

Clearcoated playfields drying in racks
Clearcoated playfields drying in racks

Once the playfield is checked an approved, it is labelled and put in a shipping rack for the journey to the pinball factory.

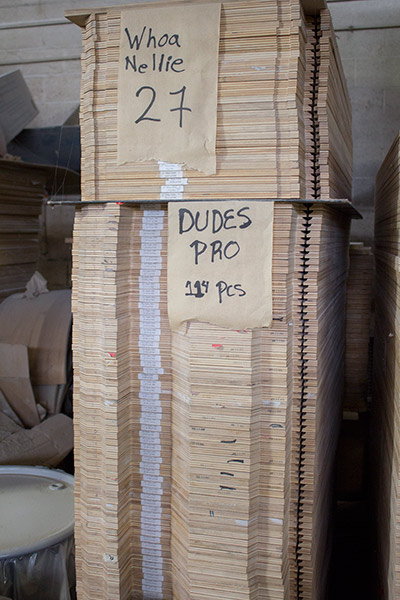

Finished playfields
Finished playfields

While we were visiting, some tests were taking place on different mixes of clearcoat. A Ghostbusters playfield had been cut in four (yes, we know) and different levels of clear were tried on each part.

There’s no question that before the clear layer is added, the finish of the playfield is very dull and lifeless. The clearcoat brings it alive, making the colours far more saturated and vibrant as well as providing protection to the artwork.

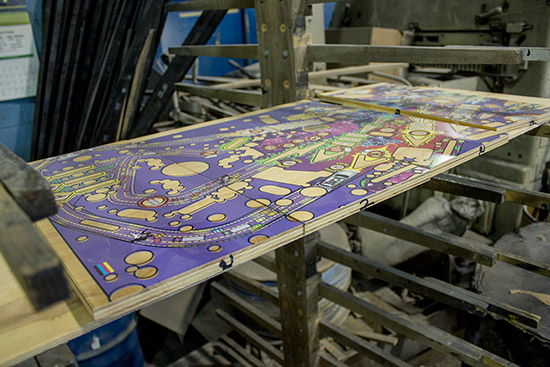

A Ghostbusters playfield cut in four
A Ghostbusters playfield cut in four

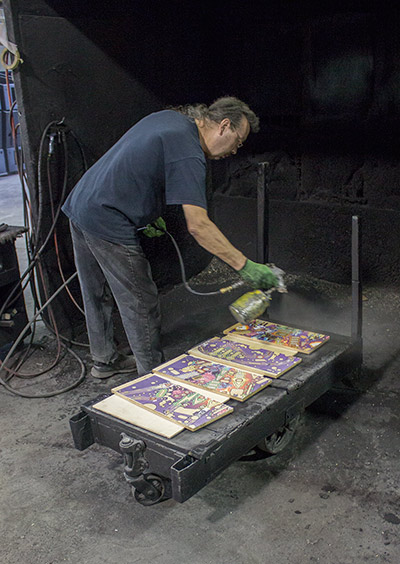

The four parts are sprayed with clearcoat
The four parts are sprayed with clearcoat

As we headed back to the front of the building and the end of our tour, we grabbed a few more pictures of cabinets being built at the factory.

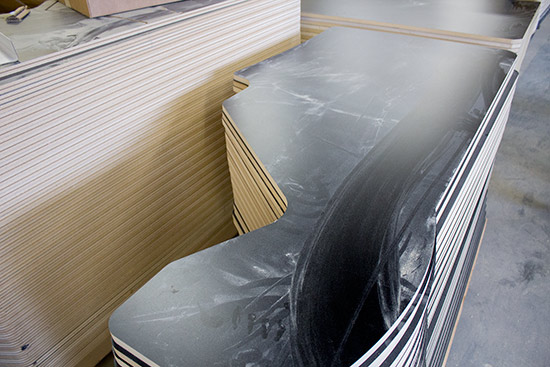

More video cabinet sides with the ever-present wood dust
More video cabinet sides with the ever-present wood dust

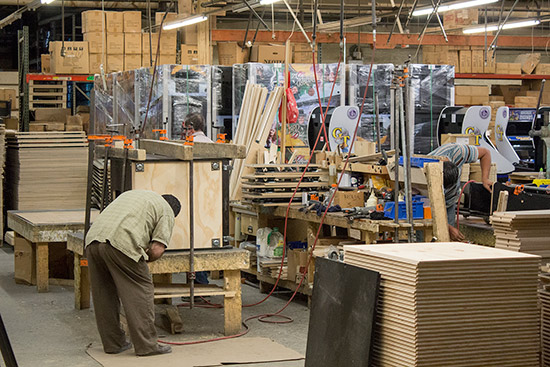

Building video cabinets with The Wizard of Oz pinball cabinets in the back
Building video cabinets with The Wizard of Oz pinball cabinets in the back

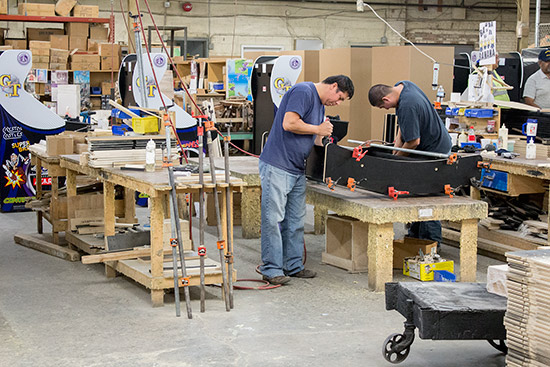

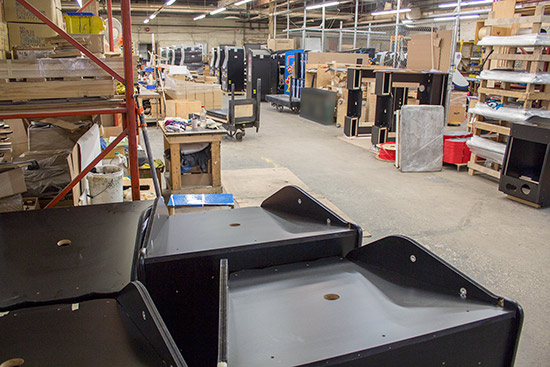

Building Arcade Legends video cabinets
Building Arcade Legends video cabinets

Finally, we were expecting Chicago Gaming Company to announce their second ‘remake’ title at Pinball Expo, but for various reasons that announcement didn’t take place.

Building Arcade Legends video cabinets
Once final look at the Churchill Cabinet Company factory floor

Huge thanks to Doug for taking time out from his Pinball Expo preparations to show us around the factory and explain its inner workings.

To an outsider it might all seem slightly chaotic, but the company has been building cabinets, backboxes and playfields for decades and know their stuff. As we have seen with other companies, not having that kind of experience can lead to problems with the quality of the product.

Meanwhile Churchill Cabinet / Chicago Gaming seem very relaxed and confident about the future. After all, while new pinball entrants bring technological advances and novel game designs to the pinball-buying masses, every game needs a cabinet, a backbox and a playfield.
